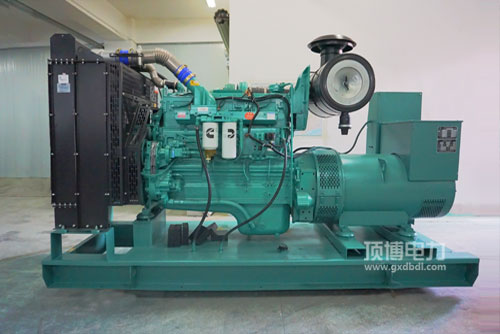

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用汽车发倾向气油市场可靠性好: 先进的的气油掌控过程有效控制体系，特有的STC、ESTC 分等级掌控过程有效控制体系，独特设计的的柱塞壳体烧燃室，髙压噴射气油，足够地做雾化，烧燃足够地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用打着机瞬态的性能非常好: 无暇的打着机整体上规划，结合康明斯多样的EFC调整系统，调整控制精度提高，响应的时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用起行为升瓦数高: 局部开发宽敞.内部结构摆放合理可行，运动平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50符合中国人非高架道路第三方关键时期及美洲Tier2. Tier 3排放出法律规定需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件必得性好， 起心理进行及维修养生保健体验，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

功效条件 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外型型号规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯发电站用打火机的的特点：量小， 降低比较高， 排水槽的空气预热，有利于启用，可移动车机24v电源的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发思想应用	惯用工作电压(kW)Prime Power	备用电源耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
